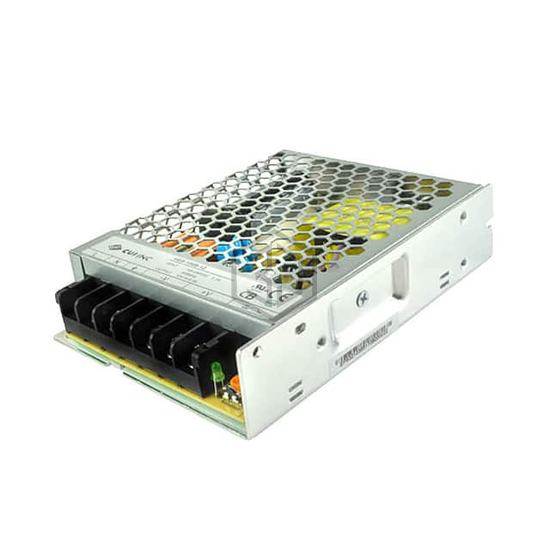

AC/DC CONVERTER 12V 100W
VGS-100B-12 is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 12V 100W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 5.08" L x 3.84" W x 1.18" H (129.0mm x 97.5mm x 30.0mm).
In Stock: 134
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 8.3 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 100W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 1.5 kV |
| Efficiency | 85% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.08" L x 3.84" W x 1.18" H (129.0mm x 97.5mm x 30.0mm) |
| Approval Agency | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
| Standard Number | 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3 |
Submit your RFQ for VGS-100B-12 and get a quote within 24 hours.
