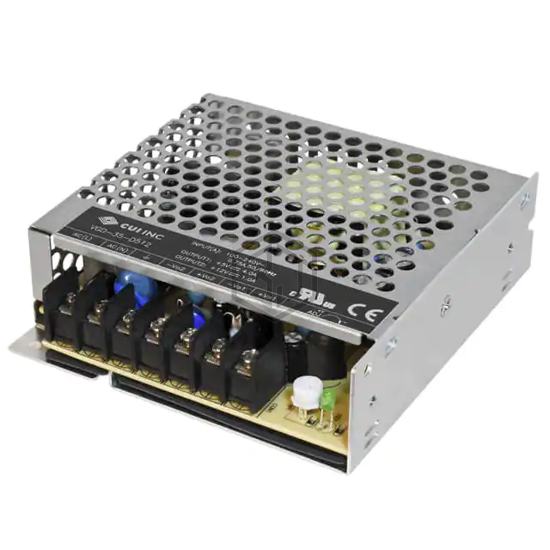

AC/DC CONVERTER 5V 12V 32W
VGD-35-D512 is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 5V 12V 32W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 373 VDC, size / dimension 3.82" L x 3.64" W x 1.18" H (97.0mm x 92.5mm x 30.0mm).
In Stock: 229
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 2 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 373 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4 A |
| Current - Output 2 | 1 A |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 32W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 81% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.82" L x 3.64" W x 1.18" H (97.0mm x 92.5mm x 30.0mm) |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for VGD-35-D512 and get a quote within 24 hours.
