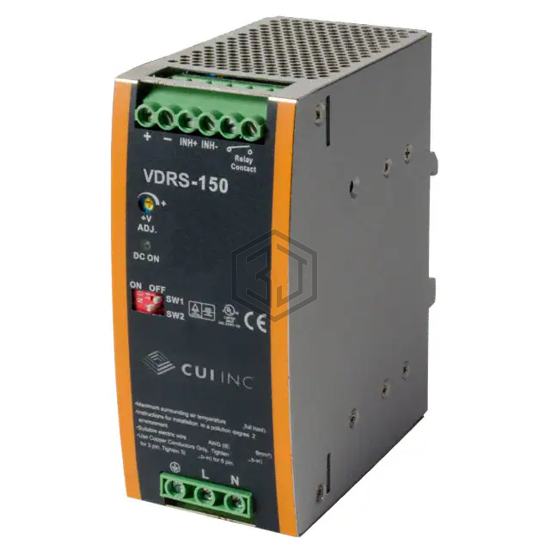

AC/DC CONVERTER 24V 150W
VDRS-150-24 is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. AC/DC CONVERTER 24V 150W. Key specifications: operating temperature -10°C ~ 70°C, current - output (max) 6.3A, size / dimension 3.93" L x 2.19" W x 4.92" H (99.8mm x 55.5mm x 125.0mm), number of outputs 1.
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 88 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 6.3A |
| Power (Watts) | 150W |
| Voltage - Isolation | 4.242 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -10°C ~ 70°C |
| Features | Adjustable Output, PFC, Remote On/Off, Universal Input |
| Size / Dimension | 3.93" L x 2.19" W x 4.92" H (99.8mm x 55.5mm x 125.0mm) |
| Approval Agency | CE, cULus, cURus, TUV |
| Standard Number | - |
