CONVERTER DC/DC +/-12V OUT 15W

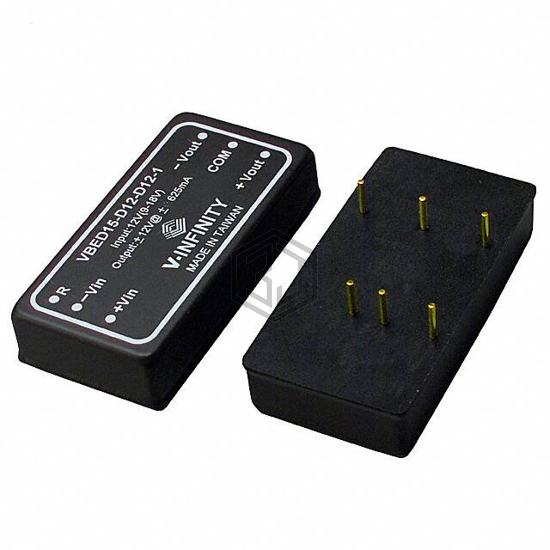

VBED15-D12-D12-1 is a DC DC Converters manufactured by CUI Inc.. CONVERTER DC/DC +/-12V OUT 15W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 71°C, package / case 6-DIP Module, current - output (max) 625mA, 625mA.
In Stock: 429
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 625mA, 625mA |
| Power (Watts) | 15 W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -25°C ~ 71°C |
| Efficiency | 83% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, UL |
| Standard Number | 60950-1 |
Submit your RFQ for VBED15-D12-D12-1 and get a quote within 24 hours.
