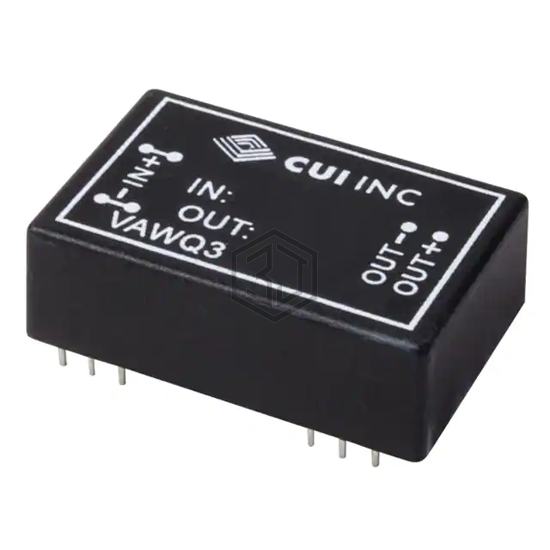

DC DC CONVERTER +/-15V 3W
VAWQ3-Q24-D15H is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-15V 3W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 71°C, package / case 24-DIP Module, 15 Leads, current - output (max) 100mA, 100mA.
In Stock: 133
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -25°C ~ 71°C |
| Efficiency | 72% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 15 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for VAWQ3-Q24-D15H and get a quote within 24 hours.
