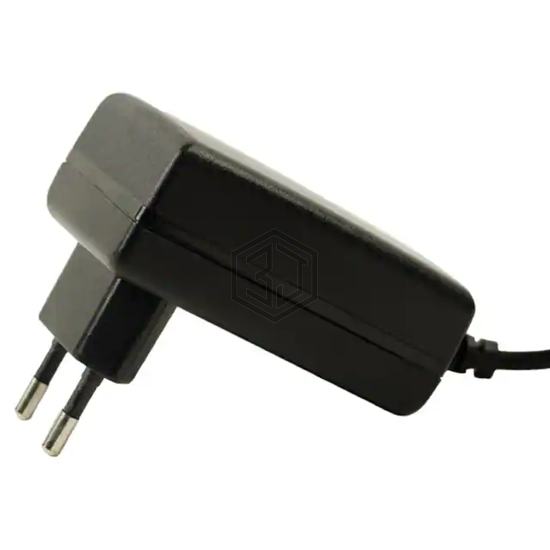

AC/DC WALL MOUNT ADAPTER 48V 30W
SWM30-48-EV-P5 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC WALL MOUNT ADAPTER 48V 30W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 620mA, size / dimension 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm).
In Stock: 2,425
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | Europe |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 48V |
| Current - Output (Max) | 620mA |
| Power (Watts) | 30 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | Medical |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 47.2" (1.20m) |
| Input Connector | CEE 7/16 |
| Features | - |
| Size / Dimension | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) |
| Approval Agency | CB Scheme, CSA, EN, FCC, IEC, UL |
| Standard Number | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
Submit your RFQ for SWM30-48-EV-P5 and get a quote within 24 hours.
