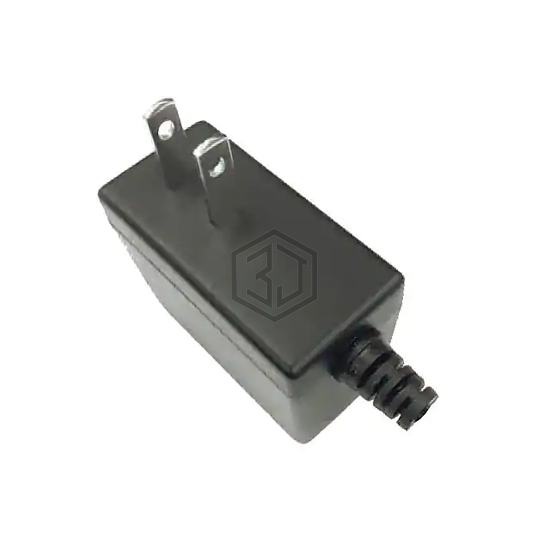

AC/DC WALL MOUNT ADAPTER 9V 6W
SWI6-9-N-P1 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC WALL MOUNT ADAPTER 9V 6W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 670mA, size / dimension 2.20" L x 1.10" W x 1.65" H (56.0mm x 28.0mm x 42.0mm).
In Stock: 720
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 670mA |
| Power (Watts) | 6 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Phono Plug, 3.5mm O.D. x 14.0mm |
| Cord Length | 59" (1.50m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 2.20" L x 1.10" W x 1.65" H (56.0mm x 28.0mm x 42.0mm) |
| Approval Agency | CB Scheme, CSA, FCC, IEC, PSE, UL |
| Standard Number | C22.2 No. 60950-1; 60950-1; 62368-1 |
