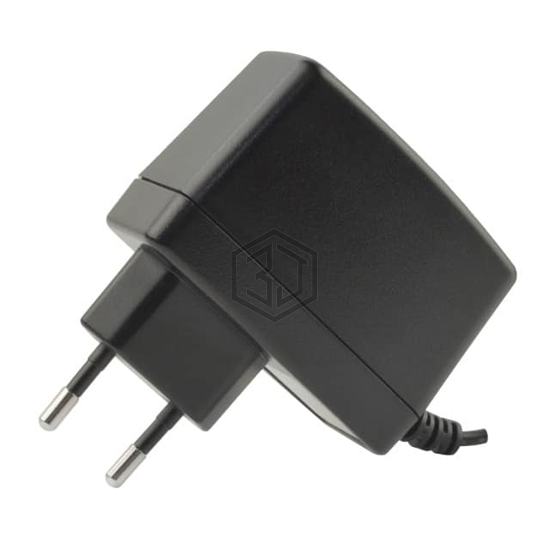

AC/DC WALL MOUNT ADAPTER 24V 15W
SWI15-24-E-P5 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC WALL MOUNT ADAPTER 24V 15W. Key specifications: operating temperature -20°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 630mA, size / dimension 2.80" L x 2.62" W x 1.91" H (71.0mm x 66.6mm x 48.4mm).
In Stock: 516
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | Europe |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 630mA |
| Power (Watts) | 15 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | -20°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | CEE 7/16 |
| Features | - |
| Size / Dimension | 2.80" L x 2.62" W x 1.91" H (71.0mm x 66.6mm x 48.4mm) |
| Approval Agency | EN, FCC, SIQ, TUV |
| Standard Number | 55011 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 62368-1 |
