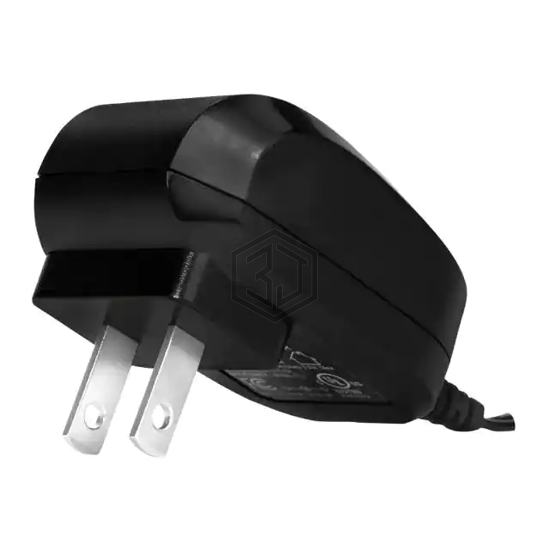

AC/DC WALL MOUNT ADAPTER 12V 12W
SWH15-12-NB-P5 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC WALL MOUNT ADAPTER 12V 12W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 1A, size / dimension 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm).
In Stock: 317
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Wall Mount (Class II) |
| Input Type | Fixed Blade |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 1A |
| Power (Watts) | 12 W |
| No Load Power Consumption | 100mW |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | NEMA 1-15P |
| Features | - |
| Size / Dimension | 2.44" L x 1.56" W x 1.31" H (62.0mm x 39.7mm x 33.2mm) |
| Approval Agency | cULus, FCC |
| Standard Number | - |
Submit your RFQ for SWH15-12-NB-P5 and get a quote within 24 hours.
