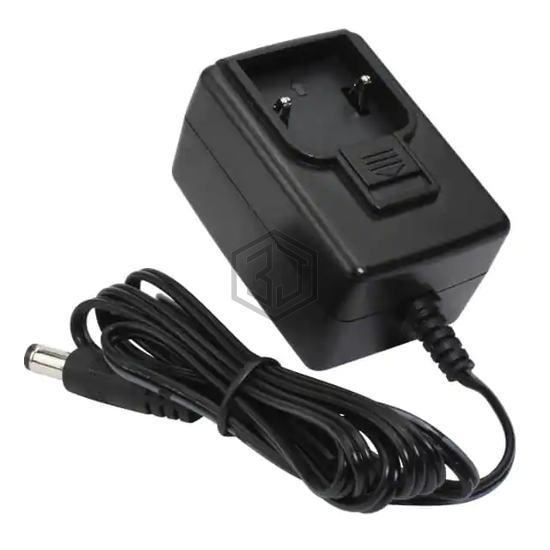

AC/DC WALL MOUNT ADAPTER 5V 12W
SMM12-5-KB-P6 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC WALL MOUNT ADAPTER 5V 12W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 2.4A, size / dimension 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm).
In Stock: 275
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 5V |
| Current - Output (Max) | 2.4A |
| Power (Watts) | 12 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial), Medical |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 59" (1.50m) |
| Input Connector | Multi-Blade (Sold Separately) |
| Features | - |
| Size / Dimension | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) |
| Approval Agency | CE, cULus, FCC, PSE, TUV |
| Standard Number | 60601-1; 60950-1 |
Submit your RFQ for SMM12-5-KB-P6 and get a quote within 24 hours.
