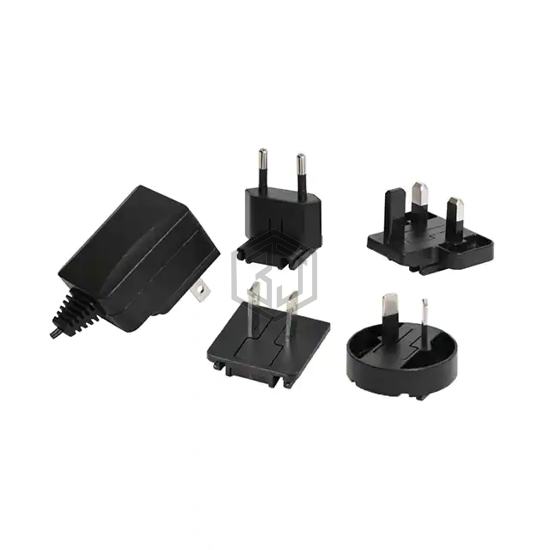

AC/DC WALL MOUNT ADAPTER 9V 5.9W
SMI6B-9-4-P5R is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC WALL MOUNT ADAPTER 9V 5.9W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 660mA, size / dimension 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm).
In Stock: 292
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Included) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 660mA |
| Power (Watts) | 5.9 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 60.2" (1.53m) |
| Input Connector | Multi-Blade (Included) |
| Features | - |
| Size / Dimension | 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm) |
| Approval Agency | CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL |
| Standard Number | C22.2 No. 60950-1; 60950-1; 62368-1 |
Submit your RFQ for SMI6B-9-4-P5R and get a quote within 24 hours.
