AC/DC WALL MNT ADAPTER 5.9V 18W

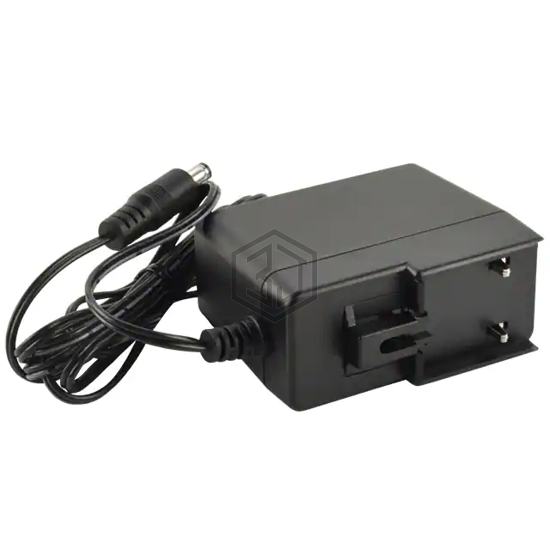

SMI18-5.9-K-P5 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC WALL MNT ADAPTER 5.9V 18W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 3A, size / dimension 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm).
In Stock: 101
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 5.9V |
| Current - Output (Max) | 3A |
| Power (Watts) | 18 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 47.2" (1.20m) |
| Input Connector | Multi-Blade |
| Features | - |
| Size / Dimension | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) |
| Approval Agency | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL |
| Standard Number | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
