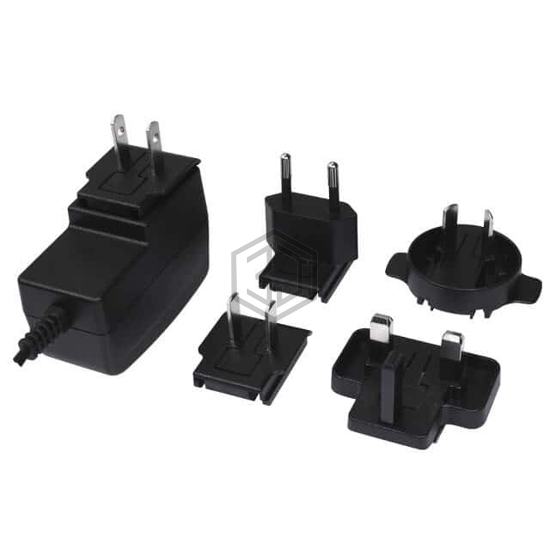

AC/DC WALL MOUNT ADAPTER 9V 12W
SMI12-9-VB-CUB is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC WALL MOUNT ADAPTER 9V 12W. Key specifications: operating temperature -10°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 1.33A, size / dimension 2.72" L x 1.25" W x 1.87" H (69.0mm x 31.8mm x 47.5mm).
In Stock: 348
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Included) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 1.33A |
| Power (Watts) | 12 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | -10°C ~ 40°C |
| Output Connector | USB C Receptacle |
| Cord Length | 59" (1.50m) |
| Input Connector | Multi-Blade |
| Features | - |
| Size / Dimension | 2.72" L x 1.25" W x 1.87" H (69.0mm x 31.8mm x 47.5mm) |
| Approval Agency | CE, cULus, FCC, PSE, RCM |
| Standard Number | 62368-1 |
Submit your RFQ for SMI12-9-VB-CUB and get a quote within 24 hours.
