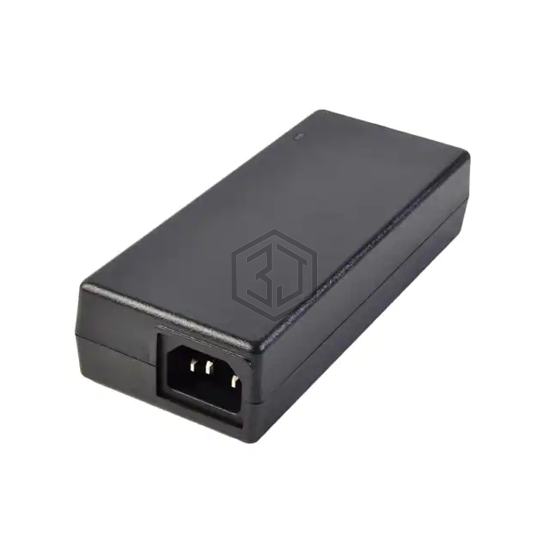

AC/DC DESKTOP ADAPTER 24V 90W
SDI90-24-U-P5R is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC DESKTOP ADAPTER 24V 90W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 3.75A, size / dimension 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm).
In Stock: 2,282
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 3.75A |
| Power (Watts) | 90 W |
| No Load Power Consumption | 210mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 59" (1.50m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) |
| Approval Agency | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
| Standard Number | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
