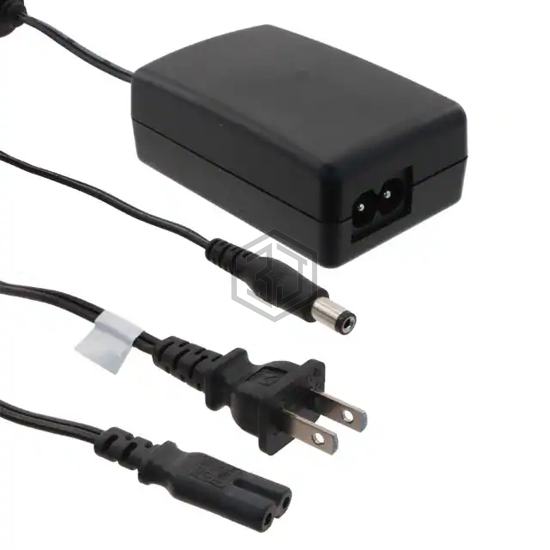

AC/DC DESKTOP ADAPTER 9V 45W
SDI50-9-UD2-P6R is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC DESKTOP ADAPTER 9V 45W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 5A, size / dimension 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm).
In Stock: 7,696
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | Europe |
| Form | Desktop (Class II) |
| Input Type | Cord |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 5A |
| Power (Watts) | 45 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 59" (1.50m) |
| Input Connector | IEC 320-C8 |
| Features | - |
| Size / Dimension | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) |
| Approval Agency | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
| Standard Number | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
Submit your RFQ for SDI50-9-UD2-P6R and get a quote within 24 hours.
