AC/DC DESKTOP ADAPTER 5V 20W

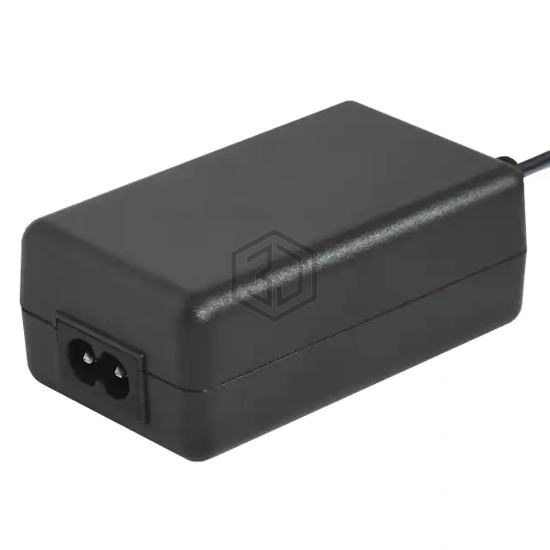

SDI24-5-UDC-P6R is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC DESKTOP ADAPTER 5V 20W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 4A, size / dimension 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm).
In Stock: 1,654
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Desktop (Class II) |
| Input Type | Cord |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 5V |
| Current - Output (Max) | 4A |
| Power (Watts) | 20 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Cord Length | 39.4" (1.00m) |
| Input Connector | IEC 320-C8 |
| Features | - |
| Size / Dimension | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) |
| Approval Agency | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL |
| Standard Number | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
