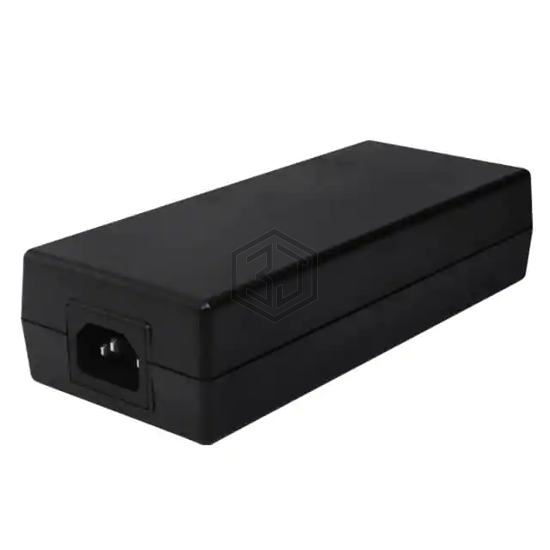

AC/DC DESKTOP ADAPTER 48V 158W
SDI160-48-U-P51 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC DESKTOP ADAPTER 48V 158W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 100 ~ 240 VAC, current - output (max) 3.3A, size / dimension 6.90" L x 2.91" W x 1.65" H (175.2mm x 74.0mm x 42.0mm).
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 48V |
| Current - Output (Max) | 3.3A |
| Power (Watts) | 158 W |
| No Load Power Consumption | 150mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Power DIN, 4 Pin |
| Cord Length | 59" (1.50m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 6.90" L x 2.91" W x 1.65" H (175.2mm x 74.0mm x 42.0mm) |
| Approval Agency | CE, cULus, cUL, FCC, UL |
| Standard Number | 62368-1 |
