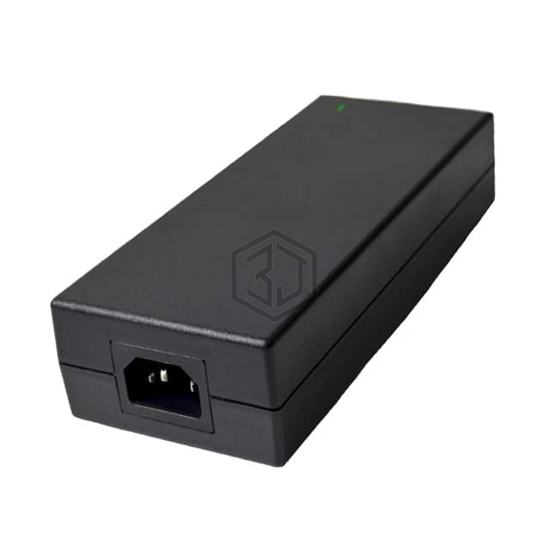

AC/DC DESKTOP ADAPTER 24V 150W
SDI150-24-U-P51 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC DESKTOP ADAPTER 24V 150W. Key specifications: operating temperature -30°C ~ 65°C, voltage - input 90 ~ 264 VAC, current - output (max) 6.25A, size / dimension 7.09" L x 2.91" W x 1.61" H (180.0mm x 74.0mm x 41.0mm).
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 6.25A |
| Power (Watts) | 150 W |
| No Load Power Consumption | 150mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | -30°C ~ 65°C |
| Output Connector | Power DIN, 4 Pin |
| Cord Length | 48" (1.22m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 7.09" L x 2.91" W x 1.61" H (180.0mm x 74.0mm x 41.0mm) |
| Approval Agency | EN, FCC, SIQ, TUV |
| Standard Number | 55011 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1 |
Submit your RFQ for SDI150-24-U-P51 and get a quote within 24 hours.
