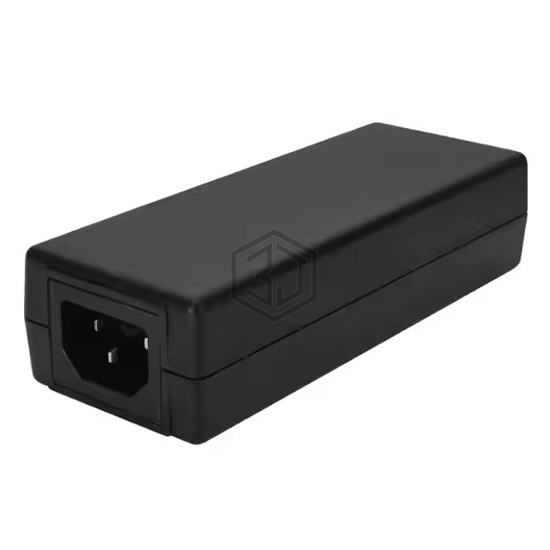

AC/DC DESKTOP ADAPTER 48V 120W
SDI120G-48-U-P51 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC DESKTOP ADAPTER 48V 120W. Key specifications: operating temperature -20°C ~ 40°C, voltage - input 100 ~ 240 VAC, current - output (max) 2.5A, size / dimension 5.20" L x 2.01" W x 1.26" H (132.0mm x 51.0mm x 32.0mm).
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 100 ~ 240 VAC |
| Voltage - Output | 48V |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 120 W |
| No Load Power Consumption | 150mW |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | -20°C ~ 40°C |
| Output Connector | Power DIN, 4 Pin |
| Cord Length | 59" (1.50m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 5.20" L x 2.01" W x 1.26" H (132.0mm x 51.0mm x 32.0mm) |
| Approval Agency | CE, cULus, FCC, UKCA |
| Standard Number | 62368-1 |
Submit your RFQ for SDI120G-48-U-P51 and get a quote within 24 hours.
