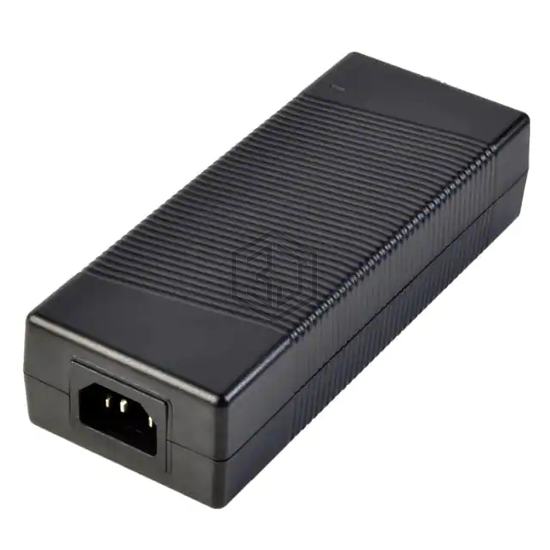

AC/DC DESKTOP ADAPTER 19V 120W
SDI120-19-UC-P51 is a AC DC Desktop, Wall Adapters manufactured by CUI Inc.. AC/DC DESKTOP ADAPTER 19V 120W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 6.3A, size / dimension 6.62" L x 2.60" W x 1.54" H (168.1mm x 66.0mm x 39.0mm).
In Stock: 2,687
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | North America |
| Form | Desktop (Class I) |
| Input Type | Cord |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 19V |
| Current - Output (Max) | 6.3A |
| Power (Watts) | 120 W |
| No Load Power Consumption | 210mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Power DIN, 4 Pin |
| Cord Length | 47.2" (1.20m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 6.62" L x 2.60" W x 1.54" H (168.1mm x 66.0mm x 39.0mm) |
| Approval Agency | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL |
| Standard Number | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
Submit your RFQ for SDI120-19-UC-P51 and get a quote within 24 hours.
