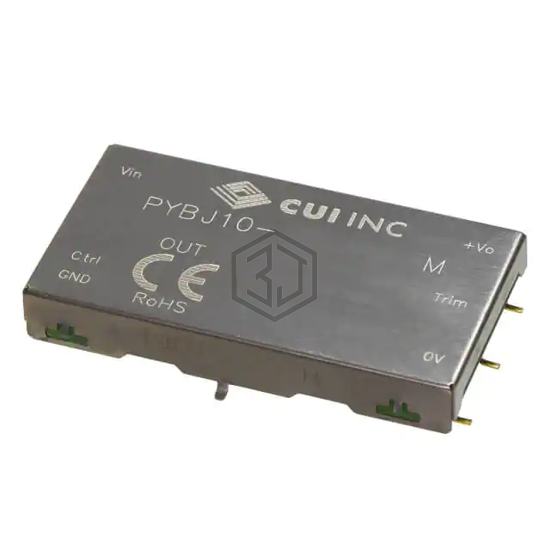

DC DC CONVERTER 15V 10W
PYBJ10-Q24-S15-M is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 15V 10W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (With Derating), package / case 6-SMD Module, current - output (max) 667mA.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 667mA |
| Power (Watts) | 10 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 88% |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 1.59" L x 0.87" W x 0.28" H (40.2mm x 22.0mm x 7.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB Scheme, IEC, UL |
| Standard Number | 62368-1 |
Submit your RFQ for PYBJ10-Q24-S15-M and get a quote within 24 hours.
