DC-DC ISOLATED, 30 W, 18-75 VDC

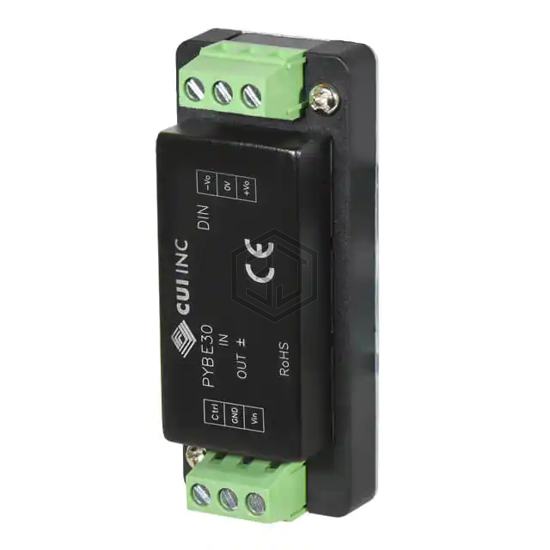

PYBE30-Q48-D5-DIN is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. DC-DC ISOLATED, 30 W, 18-75 VDC. Key specifications: operating temperature -40°C ~ 80°C (With Derating), current - output (max) 3A, 3A, size / dimension 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm), number of outputs 2.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 2 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 18V |
| DC Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 3A, 3A |
| Power (Watts) | 30W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Features | Adjustable Output, Remote On/Off |
| Size / Dimension | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for PYBE30-Q48-D5-DIN and get a quote within 24 hours.
