DC-DC ISOLATED, 30 W, 9-36 VDC

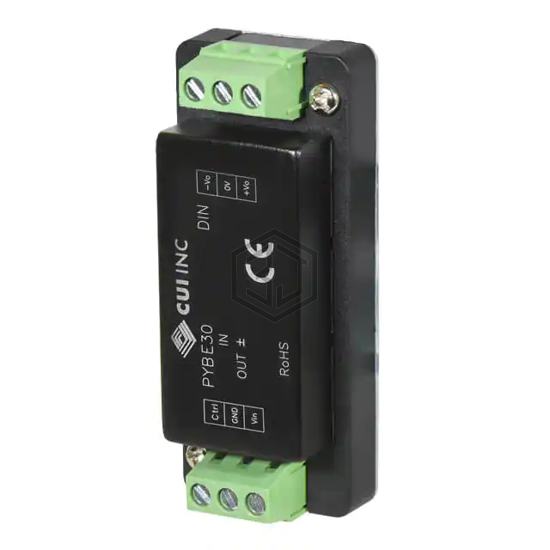

PYBE30-Q24-S24-DIN is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. DC-DC ISOLATED, 30 W, 9-36 VDC. Key specifications: operating temperature -40°C ~ 80°C (With Derating), current - output (max) 1.25A, size / dimension 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm), number of outputs 1.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 9V |
| DC Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 30W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 80°C (With Derating) |
| Features | Adjustable Output, Remote On/Off |
| Size / Dimension | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 55032 Class A; 60950-1 |
Submit your RFQ for PYBE30-Q24-S24-DIN and get a quote within 24 hours.
