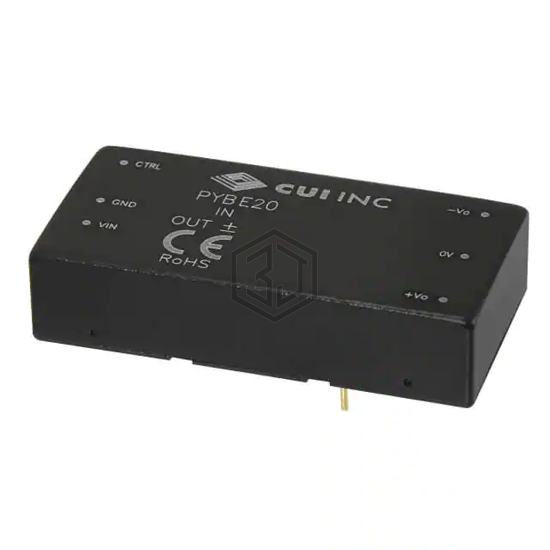

DC DC CONVERTER +/-5V 20W
PYBE20-Q48-D5 is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-5V 20W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 6-DIP Module, current - output (max) 2A, 2A.
In Stock: 305
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2A, 2A |
| Power (Watts) | 20 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 86% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 55032 Class A; 60950-1 |
Submit your RFQ for PYBE20-Q48-D5 and get a quote within 24 hours.
