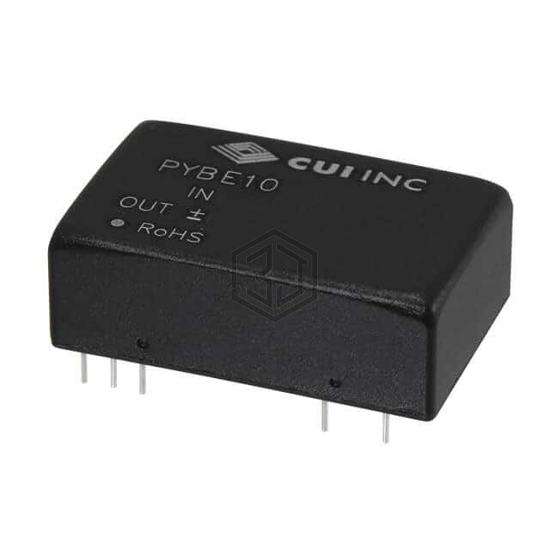

DC DC CONVERTER 3.3V 7.9W
PYBE10-Q48-S3 is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 3.3V 7.9W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 24-DIP Module, 8 Leads, current - output (max) 2.4A.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.4A |
| Power (Watts) | 7.9 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 86% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 8 Leads |
| Size / Dimension | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for PYBE10-Q48-S3 and get a quote within 24 hours.
