DC DC CONVERTER +/-12V 10W

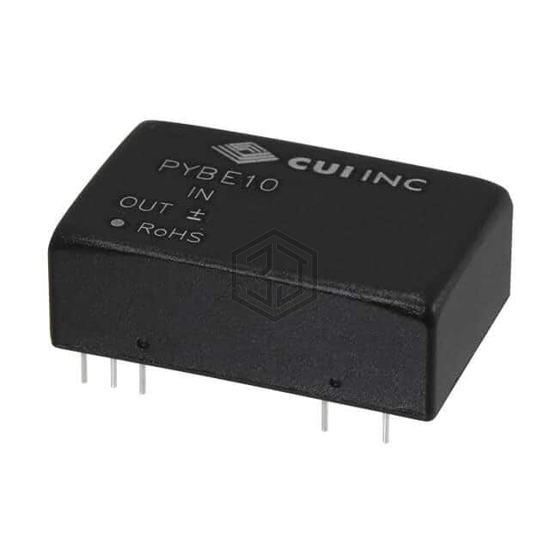

PYBE10-Q48-D12 is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-12V 10W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 24-DIP Module, 9 Leads, current - output (max) 416mA, 416mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 416mA, 416mA |
| Power (Watts) | 10 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 87% |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for PYBE10-Q48-D12 and get a quote within 24 hours.
