DC/DC CONVERTER +/-15V 20W

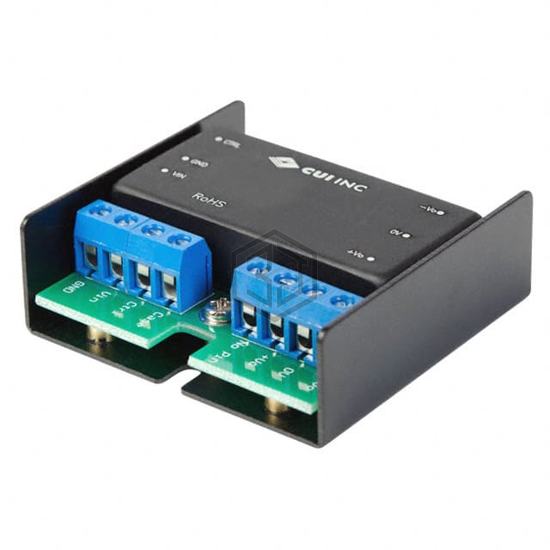

PYB20-Q48-D15-U is a DC DC Converters manufactured by CUI Inc.. DC/DC CONVERTER +/-15V 20W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, current - output (max) 667mA, 667mA, size / dimension 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm).
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 2 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 667mA, 667mA |
| Power (Watts) | 20W |
| Voltage - Isolation | - |
| Applications | - |
| Efficiency | 89% |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) |
| Approval Agency | EN, IEC |
| Standard Number | - |
Submit your RFQ for PYB20-Q48-D15-U and get a quote within 24 hours.
