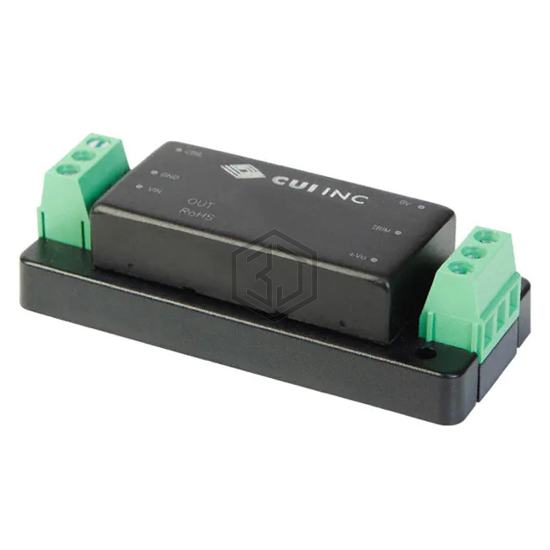

DC/DC CONVERTER +/-12V 20W
PYB20-Q48-D12-T is a DC DC Converters manufactured by CUI Inc.. DC/DC CONVERTER +/-12V 20W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, current - output (max) 834mA, 834mA, size / dimension 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm).
In Stock: 54
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 2 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 834mA, 834mA |
| Power (Watts) | 20W |
| Voltage - Isolation | - |
| Applications | - |
| Efficiency | 88% |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for PYB20-Q48-D12-T and get a quote within 24 hours.
