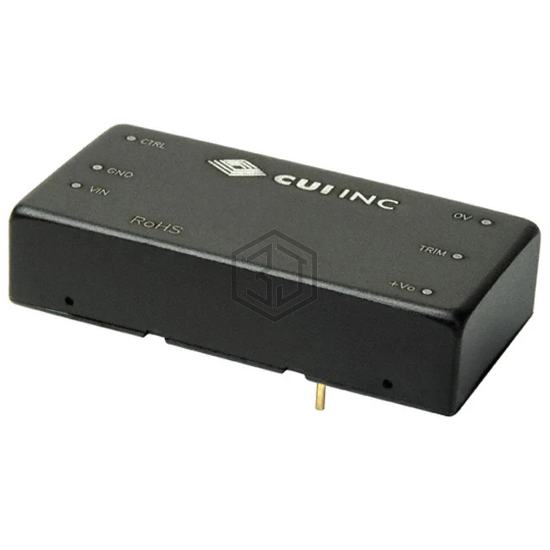

DC DC CONVERTER 3.3V 15W
PYB15-Q48-S3 is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 3.3V 15W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 6-DIP Module, current - output (max) 4A.
In Stock: 65
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 15 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 87% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.8mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 60950-1; 61000-3-2; 61000-3-3 |
Submit your RFQ for PYB15-Q48-S3 and get a quote within 24 hours.
