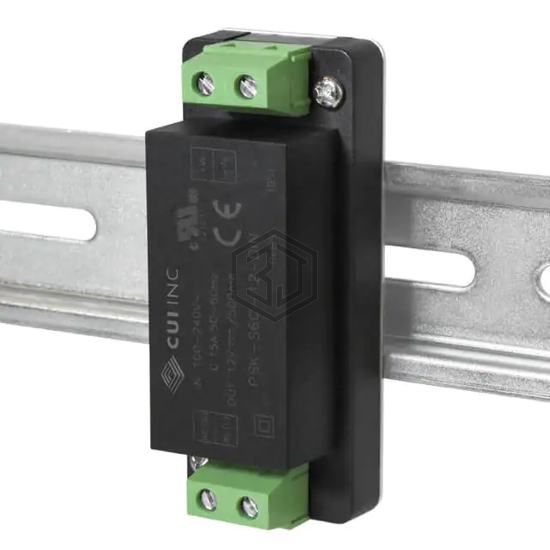

AC/DC CONVERTER 24V 6W
PSK-S6C-24-DIN is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. AC/DC CONVERTER 24V 6W. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 250mA, size / dimension 2.99" L x 1.24" W x 1.13" H (76.0mm x 31.5mm x 28.8mm), number of outputs 1.
In Stock: 142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | 100V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 250mA |
| Power (Watts) | 6W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 80% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Size / Dimension | 2.99" L x 1.24" W x 1.13" H (76.0mm x 31.5mm x 28.8mm) |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 55032 Class A; 60950-1; 61000-3-2; 62368-1 |
