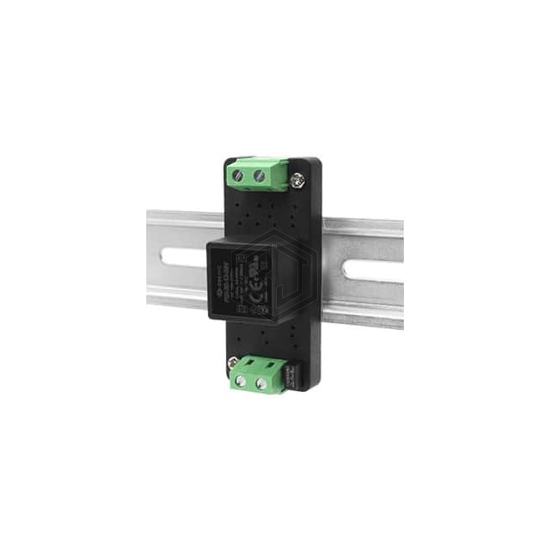

AC/DC CONVERTER 9V 3W
PSK-3D-9-DIN is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. AC/DC CONVERTER 9V 3W. Key specifications: operating temperature -40°C ~ 85°C (With Derating), current - output (max) 333mA, size / dimension 2.99" L x 1.24" W x 1.22" H (76.0mm x 31.5mm x 31.0mm), number of outputs 1.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 305 VAC |
| DC Voltage - Input (Min) | 100V |
| DC Voltage - Input (Max) | 430V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 333mA |
| Power (Watts) | 3W |
| Voltage - Isolation | 4 kV |
| Applications | Household Appliances, ITE (Commercial) |
| Efficiency | 78% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | - |
| Size / Dimension | 2.99" L x 1.24" W x 1.22" H (76.0mm x 31.5mm x 31.0mm) |
| Approval Agency | CE, cURus |
| Standard Number | 60335-1; 62368-1 |
Submit your RFQ for PSK-3D-9-DIN and get a quote within 24 hours.
