AC-DC, 25 W, 12 VDC, SINGLE OUTP

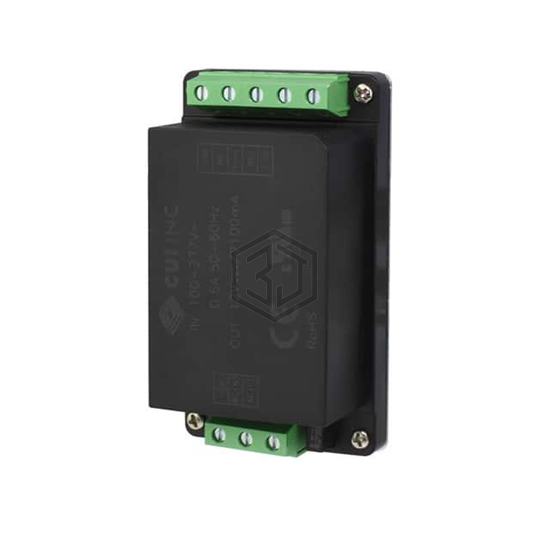

PSK-25W-12-DIN is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. AC-DC, 25 W, 12 VDC, SINGLE OUTP. Key specifications: operating temperature -40°C ~ 85°C (With Derating), current - output (max) 2.1A, size / dimension 3.78" L x 2.13" W x 1.44" H (96.1mm x 54.0mm x 36.6mm), number of outputs 1.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 305 VAC |
| DC Voltage - Input (Min) | 100V |
| DC Voltage - Input (Max) | 430V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.1A |
| Power (Watts) | 25W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 82% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | - |
| Size / Dimension | 3.78" L x 2.13" W x 1.44" H (96.1mm x 54.0mm x 36.6mm) |
| Approval Agency | CE, cURus |
| Standard Number | 62368-1 |
Submit your RFQ for PSK-25W-12-DIN and get a quote within 24 hours.
