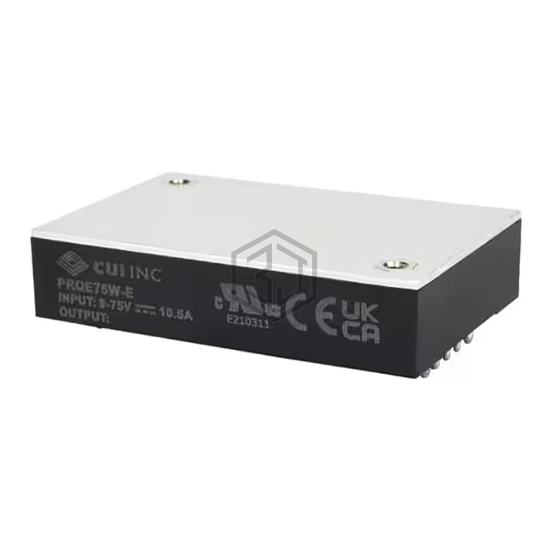

DC-DC ISOLATED, 75 W, 9~75 VDC I
PRQE75W-E12-S24-D is a DC DC Converters manufactured by CUI Inc.. DC-DC ISOLATED, 75 W, 9~75 VDC I. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case Quarter Brick, current - output (max) 3.12A.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3.12A |
| Power (Watts) | 75 W |
| Voltage - Isolation | 4.2 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | Enable, Active High |
| Approval Agency | CE, cURus, UKCA |
| Standard Number | 62368-1 |
Submit your RFQ for PRQE75W-E12-S24-D and get a quote within 24 hours.
