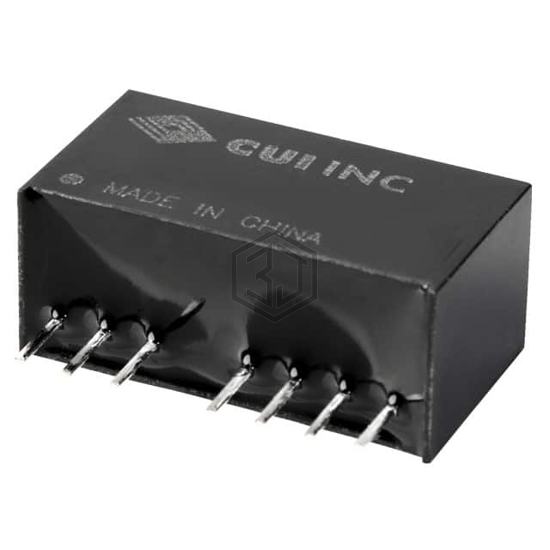

DC DC CONVERTER +/-12V 3W
PRMC3-D24-D12-S is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-12V 3W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case 8-SIP Module, 7 Leads, current - output (max) 125mA, 125mA.
In Stock: 319
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 125mA, 125mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 83% |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for PRMC3-D24-D12-S and get a quote within 24 hours.
