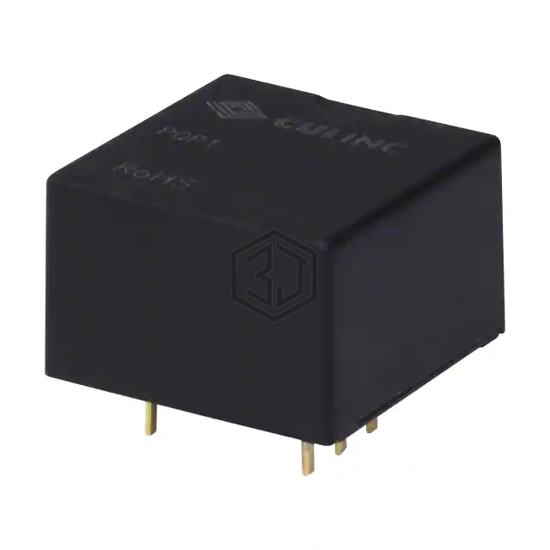

DC DC CONVERTER +/-12V 1W
PQP1-D24-D12-D is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-12V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 8-DIP Module, 5 Leads, current - output (max) 42mA, 42mA.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 42mA, 42mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 77% |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 5 Leads |
| Size / Dimension | 0.55" L x 0.55" W x 0.35" H (14.0mm x 14.0mm x 9.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for PQP1-D24-D12-D and get a quote within 24 hours.
