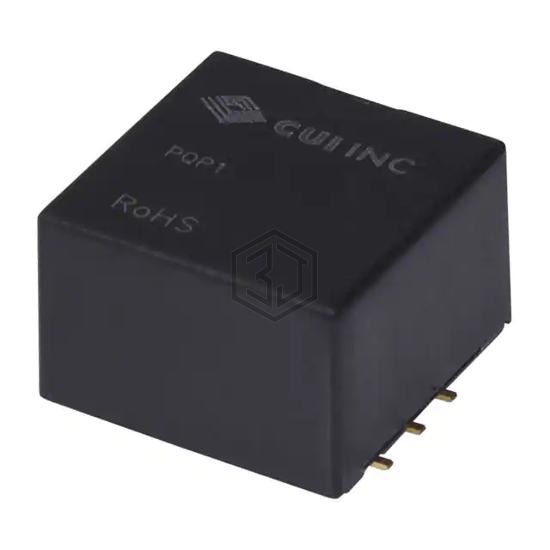

DC DC CONVERTER +/-5V 1W
PQP1-D12-D5-M is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-5V 1W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SMD Module, 5 Leads, current - output (max) 100mA, 100mA.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 77% |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD Module, 5 Leads |
| Size / Dimension | 0.55" L x 0.55" W x 0.36" H (14.0mm x 14.0mm x 9.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for PQP1-D12-D5-M and get a quote within 24 hours.
