DC DC CONVERTER +/-9V 3W

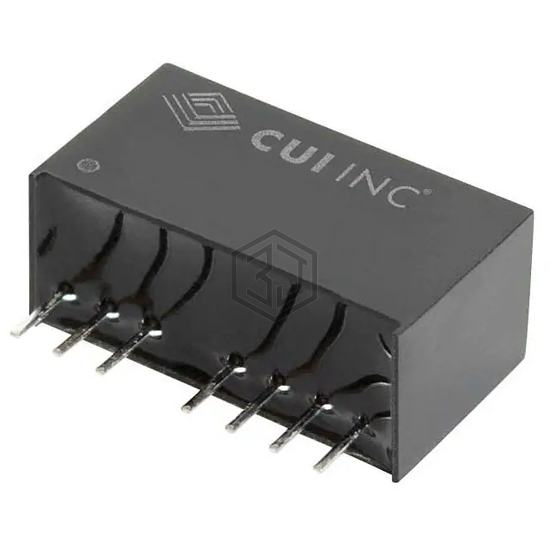

PQMC3-D24-D9-S is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-9V 3W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case 8-SIP Module, 7 Leads, current - output (max) 167mA, 167mA.
In Stock: 11
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 167mA, 167mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 81% |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for PQMC3-D24-D9-S and get a quote within 24 hours.
