DC/DC CONVERTER 12V 6W

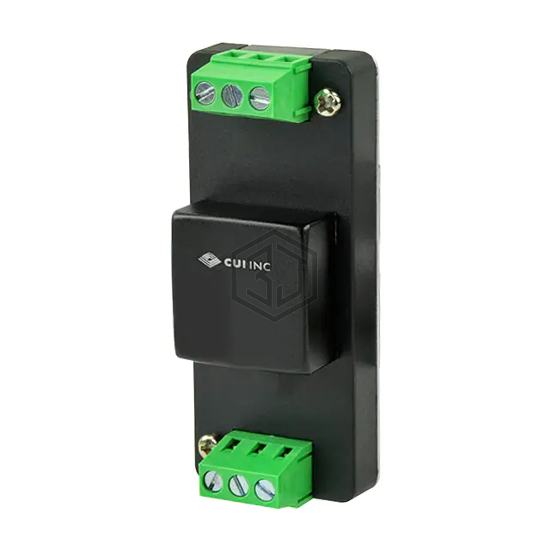

PQDE6W-Q24-S12-DIN is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. DC/DC CONVERTER 12V 6W. Key specifications: operating temperature -40°C ~ 85°C (With Derating), current - output (max) 500mA, size / dimension 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm), number of outputs 1.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 10V |
| DC Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 6W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | - |
| Size / Dimension | 2.99" L x 1.24" W x 0.87" H (76.0mm x 31.5mm x 22.2mm) |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for PQDE6W-Q24-S12-DIN and get a quote within 24 hours.
