DC-DC ISOLATED 6 W 40~160 VDC IN

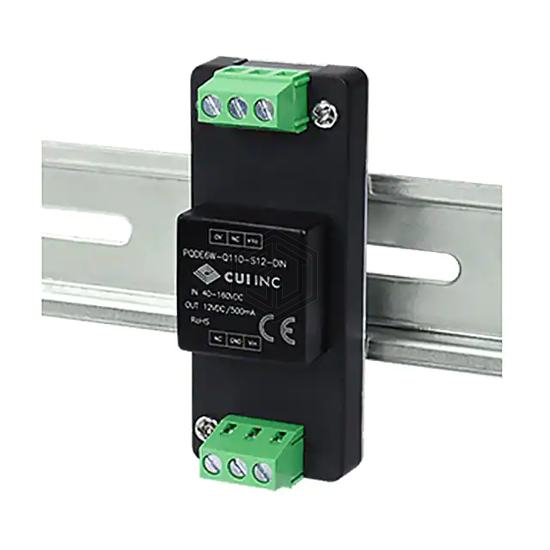

PQDE6W-Q110-S12-DIN is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. DC-DC ISOLATED 6 W 40~160 VDC IN. Key specifications: operating temperature -40°C ~ 85°C (With Derating), current - output (max) 500mA, size / dimension 2.99" L x 1.24" W x 1.02" H (76.0mm x 31.5mm x 25.8mm), number of outputs 1.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 40V |
| DC Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 6W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Efficiency | 84% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | - |
| Size / Dimension | 2.99" L x 1.24" W x 1.02" H (76.0mm x 31.5mm x 25.8mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
