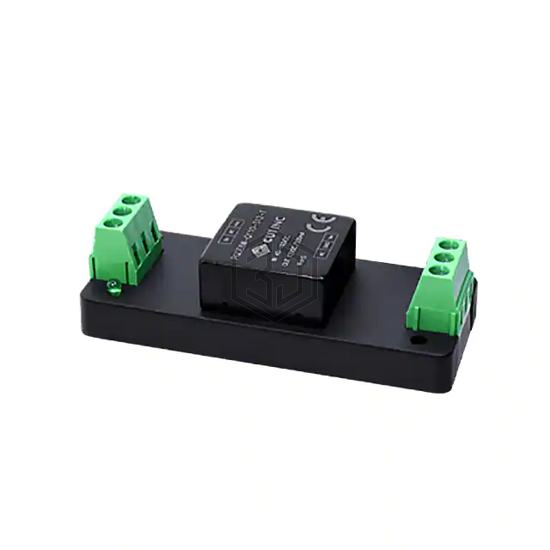

DC/DC CONVERTER +/-15V 6W
PQDE6W-Q110-D15-H-T is a DC DC Converters manufactured by CUI Inc.. DC/DC CONVERTER +/-15V 6W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), current - output (max) 200mA, 200mA, size / dimension 2.99" L x 1.24" W x 0.99" H (76.0mm x 31.5mm x 25.2mm).
In Stock: 5,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 160V |
| Number of Outputs | 2 |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 200mA, 200mA |
| Power (Watts) | 6W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Efficiency | 85% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.99" L x 1.24" W x 0.99" H (76.0mm x 31.5mm x 25.2mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for PQDE6W-Q110-D15-H-T and get a quote within 24 hours.
