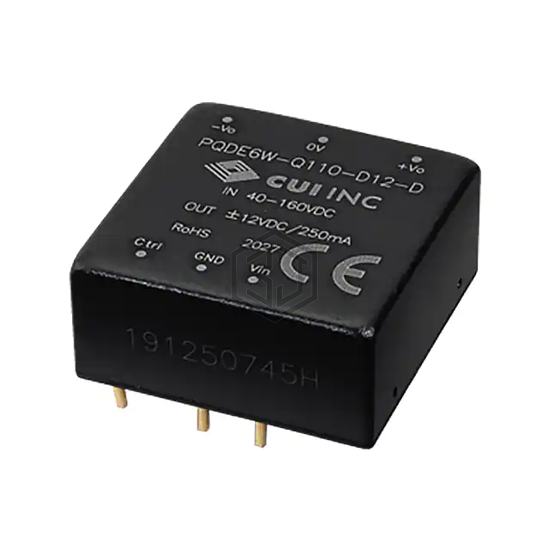

DC DC CONVERTER +/-12V 6W
PQDE6W-Q110-D12-D is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-12V 6W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), package / case 6-DIP Module, current - output (max) 250mA, 250mA.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA, 250mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 84% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for PQDE6W-Q110-D12-D and get a quote within 24 hours.
