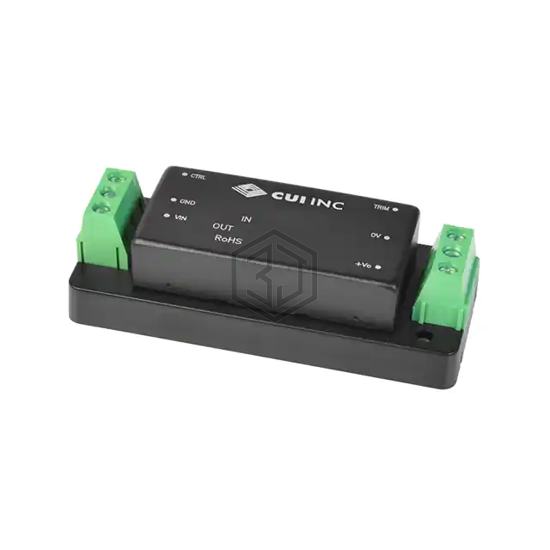

DC/DC CONVERTER 12V 30W
PQA30-D24-S12-T is a DC DC Converters manufactured by CUI Inc.. DC/DC CONVERTER 12V 30W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), current - output (max) 2.5A, size / dimension 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm).
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 30W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for PQA30-D24-S12-T and get a quote within 24 hours.
