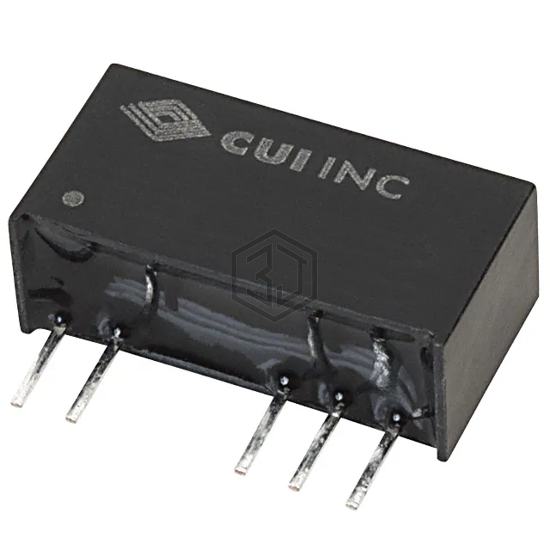

DC DC CONVERTER +/-24V 2W
PEM2-S5-D24-S is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-24V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case 7-SIP Module, 5 Leads, current - output (max) 41.6mA, 41.6mA.
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | -24V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 41.6mA, 41.6mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 84% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 55032 Class A; 60950-1 |
Submit your RFQ for PEM2-S5-D24-S and get a quote within 24 hours.
