AC/DC CONVERTER 12V 76W

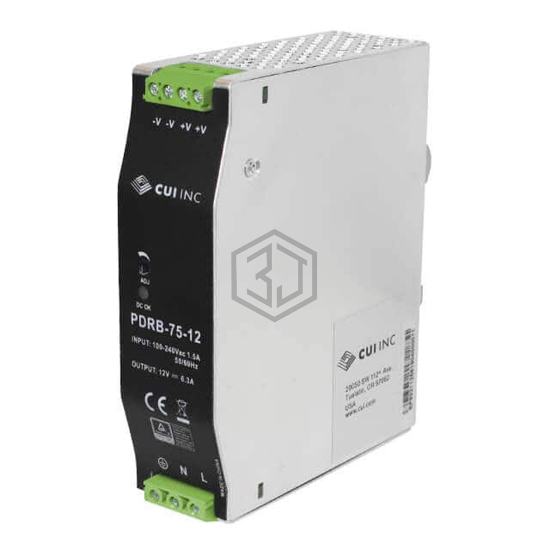

PDRB-75-12 is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. AC/DC CONVERTER 12V 76W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 6.3A, size / dimension 4.04" L x 1.36" W x 4.96" H (102.5mm x 34.5mm x 126.0mm), number of outputs 1.
In Stock: 67
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | 127V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 6.3A |
| Power (Watts) | 76W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87.5% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Universal Input |
| Size / Dimension | 4.04" L x 1.36" W x 4.96" H (102.5mm x 34.5mm x 126.0mm) |
| Approval Agency | CB Scheme, EN, IEC, SIQ, TUV |
| Standard Number | 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3 |
