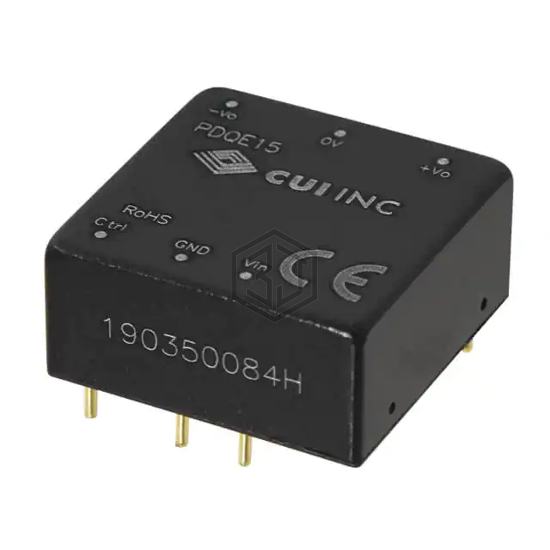

DC DC CONVERTER 3.3V 13W
PDQE15-Q48-S3-D is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 3.3V 13W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 95°C (With Derating), package / case 6-DIP Module, current - output (max) 4A.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A |
| Power (Watts) | 13 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB Scheme, EN, IEC, UL |
| Standard Number | 55024; 55032 Class A; 62368-1 |
Submit your RFQ for PDQE15-Q48-S3-D and get a quote within 24 hours.
