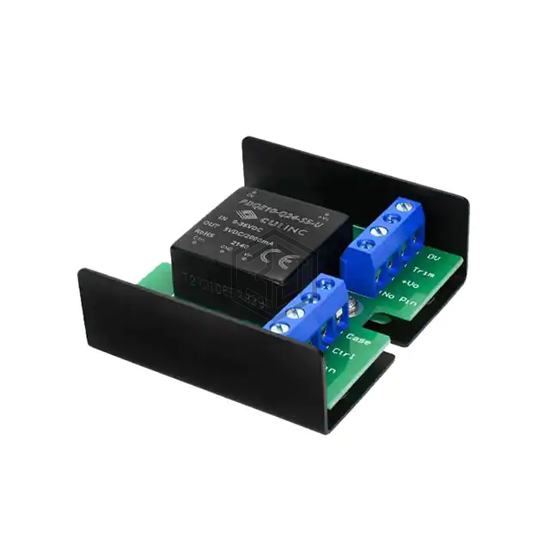

DC/DC CONVERTER +/-5V 10W
PDQE10-Q24-D5-U is a DC DC Converters manufactured by CUI Inc.. DC/DC CONVERTER +/-5V 10W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), current - output (max) 1A, 1A, size / dimension 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm).
In Stock: 8
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 2 |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A, 1A |
| Power (Watts) | 10W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Efficiency | 83% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.17" L x 2.06" W x 0.75" H (55.0mm x 52.3mm x 19.0mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for PDQE10-Q24-D5-U and get a quote within 24 hours.
