DC DC CONVERTER 3.3V 2W

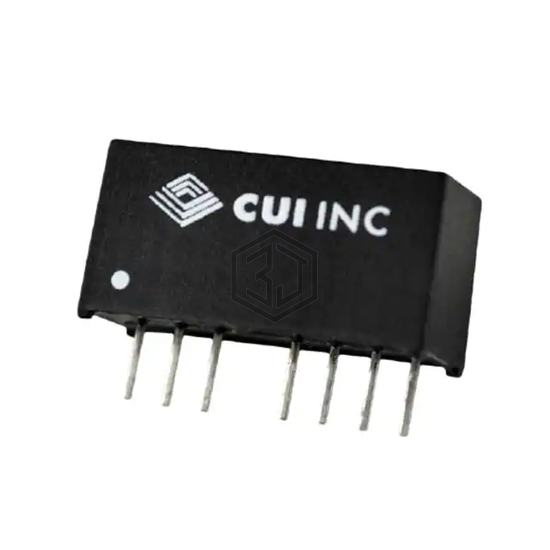

PDQ2-D5-S3-S is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 3.3V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 100°C, package / case 8-SIP Module, 7 Leads, current - output (max) 500mA.
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, SCP |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 73% |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | EN |
| Standard Number | 55032 Class A |
Submit your RFQ for PDQ2-D5-S3-S and get a quote within 24 hours.
