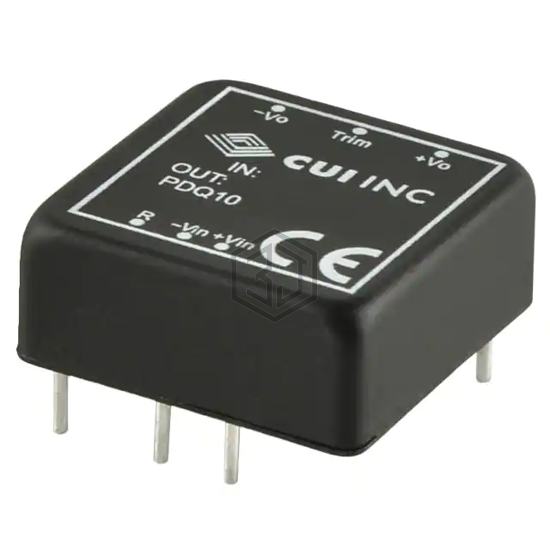

DC DC CONVERTER +/-15V 10W
PDQ10-Q24-D15-D is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-15V 10W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case 6-DIP Module, current - output (max) 333mA, 333mA.
In Stock: 1,438
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 333mA, 333mA |
| Power (Watts) | 10 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 86% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | - |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | EN |
| Standard Number | 55032 Class A |
Submit your RFQ for PDQ10-Q24-D15-D and get a quote within 24 hours.
