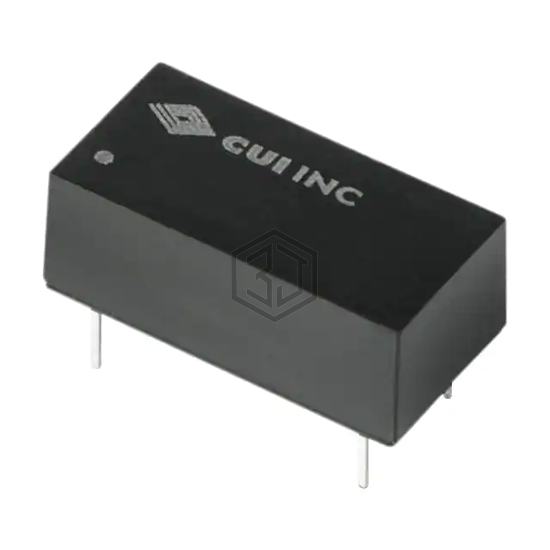

DC DC CONVERTER +/-7V 2W
PDM2-S5-D7-D is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER +/-7V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C (With Derating), package / case 14-DIP Module, 6 Leads, current - output (max) 142mA, 142mA.
In Stock: 53
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 7V |
| Voltage - Output 2 | -7V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 142mA, 142mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module, 6 Leads |
| Size / Dimension | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PDM2-S5-D7-D and get a quote within 24 hours.
