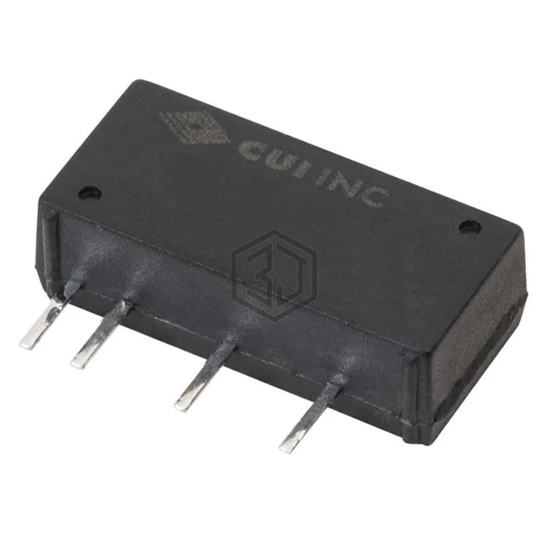

DC DC CONVERTER 9V 1W
PDM1-S15-S9-S is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 9V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case 6-SIP Module, 4 Leads, current - output (max) 111mA.
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 13.5V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 111mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.37" H (19.5mm x 6.0mm x 9.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PDM1-S15-S9-S and get a quote within 24 hours.
